Description

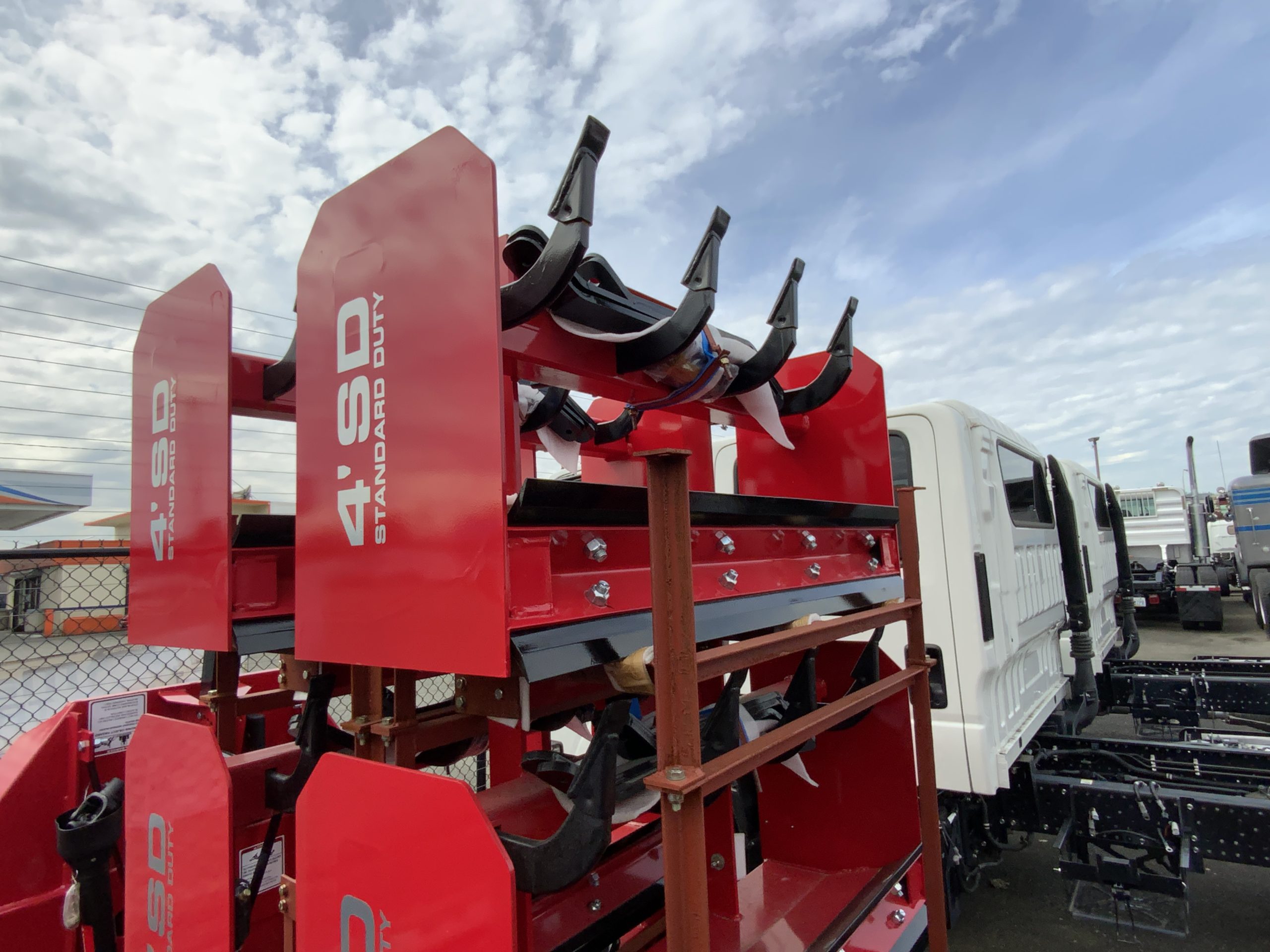

The SD4 Box Scraper is a compact, heavy-duty land leveling and grading implement built for tractors ranging from 17 to 35 horsepower. Designed for performance and durability, it combines a strong structural frame with integrated ripper shanks for breaking up hard soil and improving surface leveling.
With a 4-foot working width, the SD4 is ideal for tighter work areas, driveways, small acreage maintenance, and general land management tasks. Its rugged construction ensures long-lasting reliability even under demanding soil conditions.
Compatible with a Category I 3-point hitch, the SD4 also supports quick hitch systems for fast and easy attachment.
Key Features
- 4 ft (1.2 m) working width for tight and precise grading
- Compatible with 17–35 HP tractors
- Heavy-duty steel frame construction
- Integrated heat-treated spring steel ripper shanks
- Replaceable heat-treated shank tips
- 3 in (7.6 cm) penetration depth
- Category I 3-point hitch compatible
- Quick hitch compatible design
- High-carbon reversible and replaceable cutting blades
- Reinforced side panels for durability
Specifications
- Model Size: 17–35 HP / 13–26 kW
- Working Width: 4 ft / 1.2 m
- Weight: 310 lb / 135 kg
- Shanks: 4
- Shank Material: Heat treated spring steel
- Shank Penetration: 3 in / 7.6 cm
- Shank Beam: 4 x 4 x 0.25 in / 10 x 10 x 0.63 cm
- Side Panels: 16 x 24 x 0.25 in / 41 x 61 x 0.63 cm
- Cutting Blades: 2 high-carbon, reversible and replaceable
- A-Frame Material: 0.5 x 3.5 in / 1.27 x 8.8 cm
- Hitch Type: Category I 3-Point
- Quick Hitch: Compatible
- Dimensions (L x W x H): 1285 x 1130 x 2245 mm
