Side Dump Trailers

Why buy a Demco Side Dump Trailer?

1) Low Center of Gravity – the bottom of the tub sits inside and below the top of the chassis frame rails

Stability when pulling and cornering and the tires stay grounded when dumping
Reduces the risk of tipping over the trailer during the dump cycle without sacrificing the proper dump angle and creates a lower loading height.

2) 3 Pivot points on each side of the trailer the tub rotates on

It evenly distributes the pressure of the dump
Improves the stability and longevity of your trailer

3) The only trailers you can change directions right form the driver’s side

You cannot accidentally unlatch all four corners of the tub at once. This action could cause considerable expense or safety issues by wrecking the tub, cylinder, or even dump on the wrong side than originally intended

4) The trademarked FlexCorner design allows for flexibility to maintain the structural integrity of the tub and eliminates cracking of the welds

The corners allow the trailer to flex between the main corners and the G-Rail when transporting and dumping
The flex at the corners are like shock absorbers and eliminate the need for added welds and repair

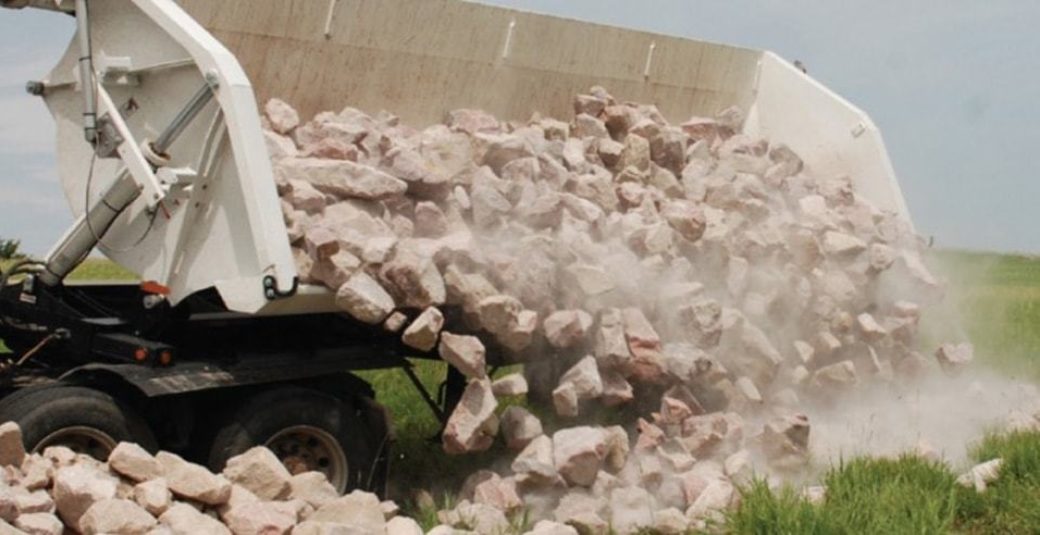

5) Faster unloading

The Demco SD have cylinders located at each end of the tub. The design can speed up cycle time

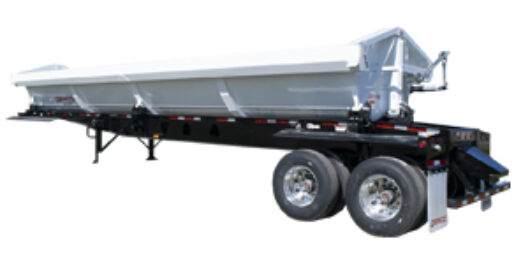

Tandem Axle Side Dump Trailers

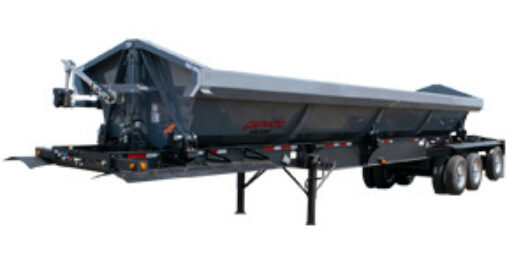

Triple Axle Side Dump Trailers

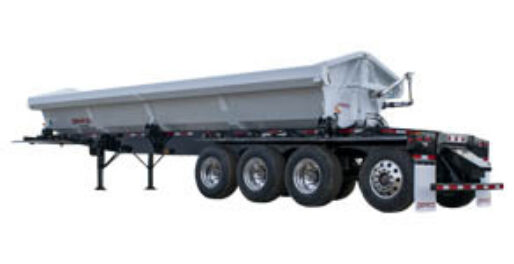

Quad Axle Side Dump Trailers

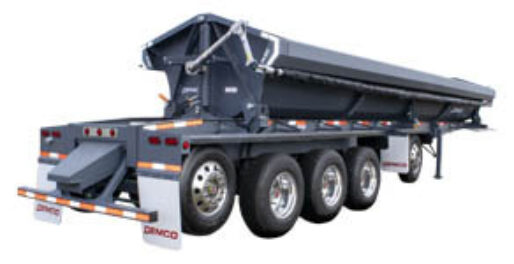

Quint Axle Side Dump Trailers

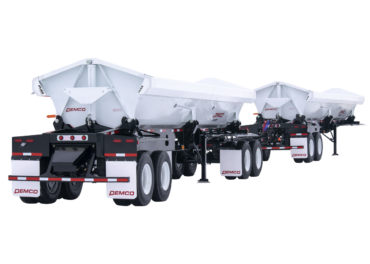

Side Dump Trailer Trains

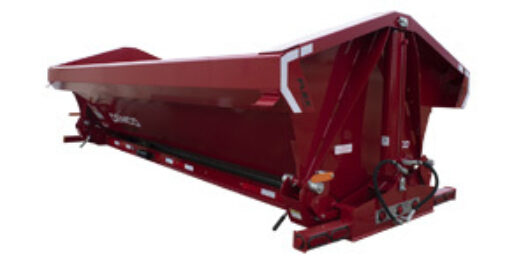

Side Dump Truck Boxes

Tandem and Tri Axle Specifications

Model	Suspension	Chassis Length	Wheel Base	Axle Spacing	Tub Length	Tub Volume	Tare Weight	Optional 37′ Tub
35′ Tandem	Spring or Air Ride	35′-4″	324.5″	49″	30′-3″	21.4 cu. yd.	13,640 lbs	N/A
40′ Tandem	Spring or Air Ride	40′-5″	383″	49″	34′-3″	22.7 cu. yd.	15,680 lbs	N/A
35′ Tri Axle	Spring or Air Ride	35′-4″	324.5″	49″	30′-3″	21.4 cu. yd.	16,500 lbs	N/A
40′ Tri Axle	Spring or Air Ride	40′-5″	383″	49″	34′-3″	22.7 cu. yd.	17,000 lbs	N/A
42′ Tri Axle	Spring or Air Ride	42′-1″	404″	49″	34′-3″	22.7 cu. yd.	17,500 lbs	N/A
44′ Tri Axle	Spring or Air Ride	44′-2″	428″	49″	34′-3″	22.7 cu. yd.	17,900 lbs	24.5 cu. yd.
44′ Tri Axle	Spread Air Ride	44′-2″	417″	60″	34′-3″	22.7 cu. yd.	17,900 lbs	24.5 cu. yd.
46′ Tri Axle	Air Ride Closed/Open	45′-8″	377″	49″ / 79″	34′-3″	22.7 cu. yd.	18,000 lbs	N/A
47 Tri Axle	Air Ride Closed/Open	47′-2″	395″	49″ / 79″	37″	N/A	18,200 lbs	24.5 cu. yd.

Quint Axle and Quad Axle Specifications

Model	Suspension	Chassis Length	Wheel Base	Axles 1-2	Axles 2-3	Axles 3-4	Axles 4-5	Volume 34′-3″ Tub	Tare Weight	Optional 37′ Tub
44′ Quad Rear Lift	Air Ride	44′-4″	330″	49″	49″	49″	N/A	22.7 cu. yd.	18,500 lbs	24.5 cu. yd.
44′ Quad Rear Lift Lift/Steer	Air Ride	44′-4″	335″	49″	49″	60″	N/A	22.7 cu. yd.	19,200 lbs	24.5 cu. yd.
47′ Quad FL/RLS	Air Ride	47′-2″	395″	49″	49″	60″	N/A	N/A	19,500 lbs	24.5 cu. yd.
44′ Quint	Air Ride	44′-4″	243 1/32″	97″	49″	49″	49″	N/A	20,800 lbs lbs	24.5 cu. yd.

Brochures
