Description

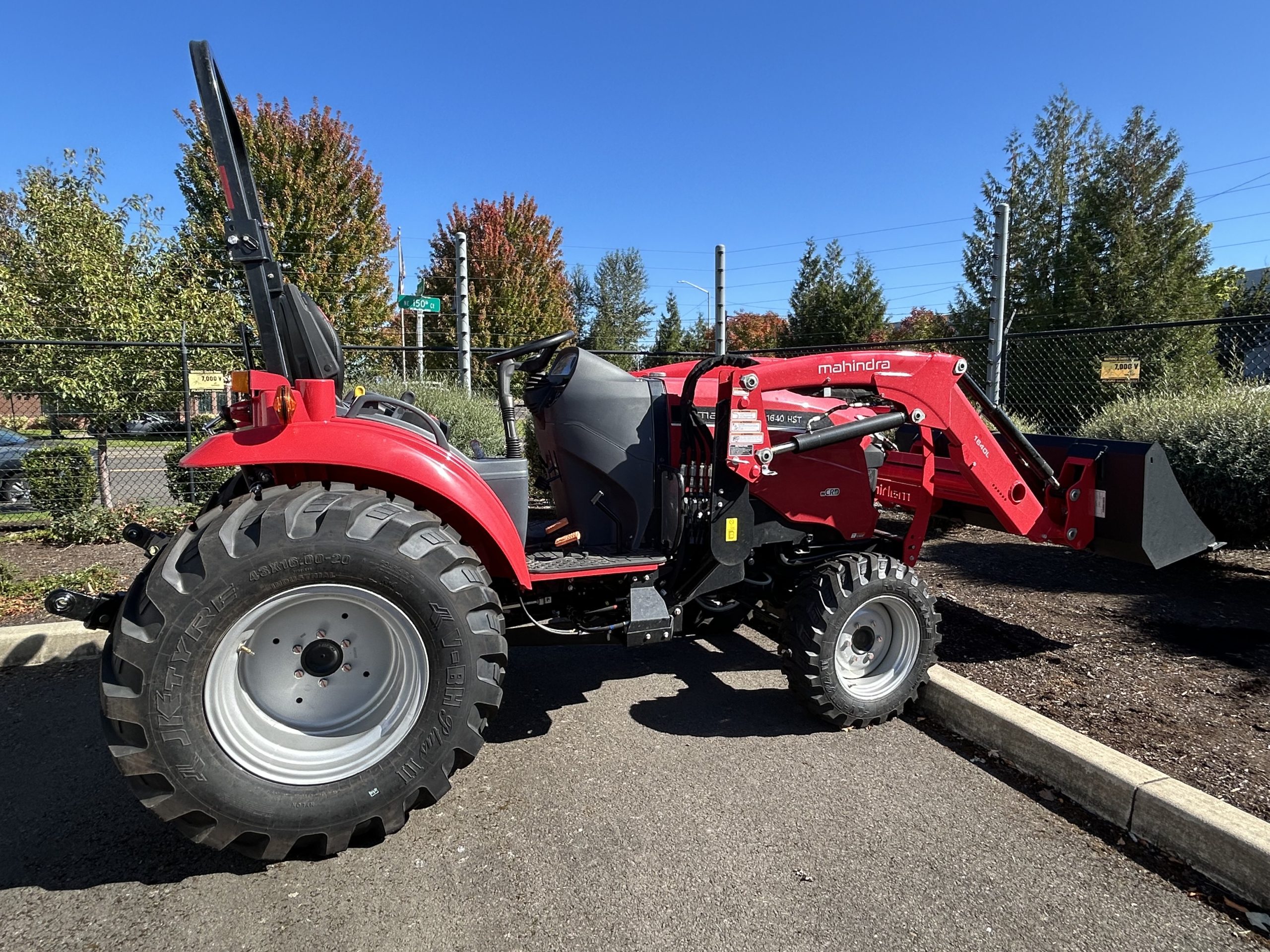

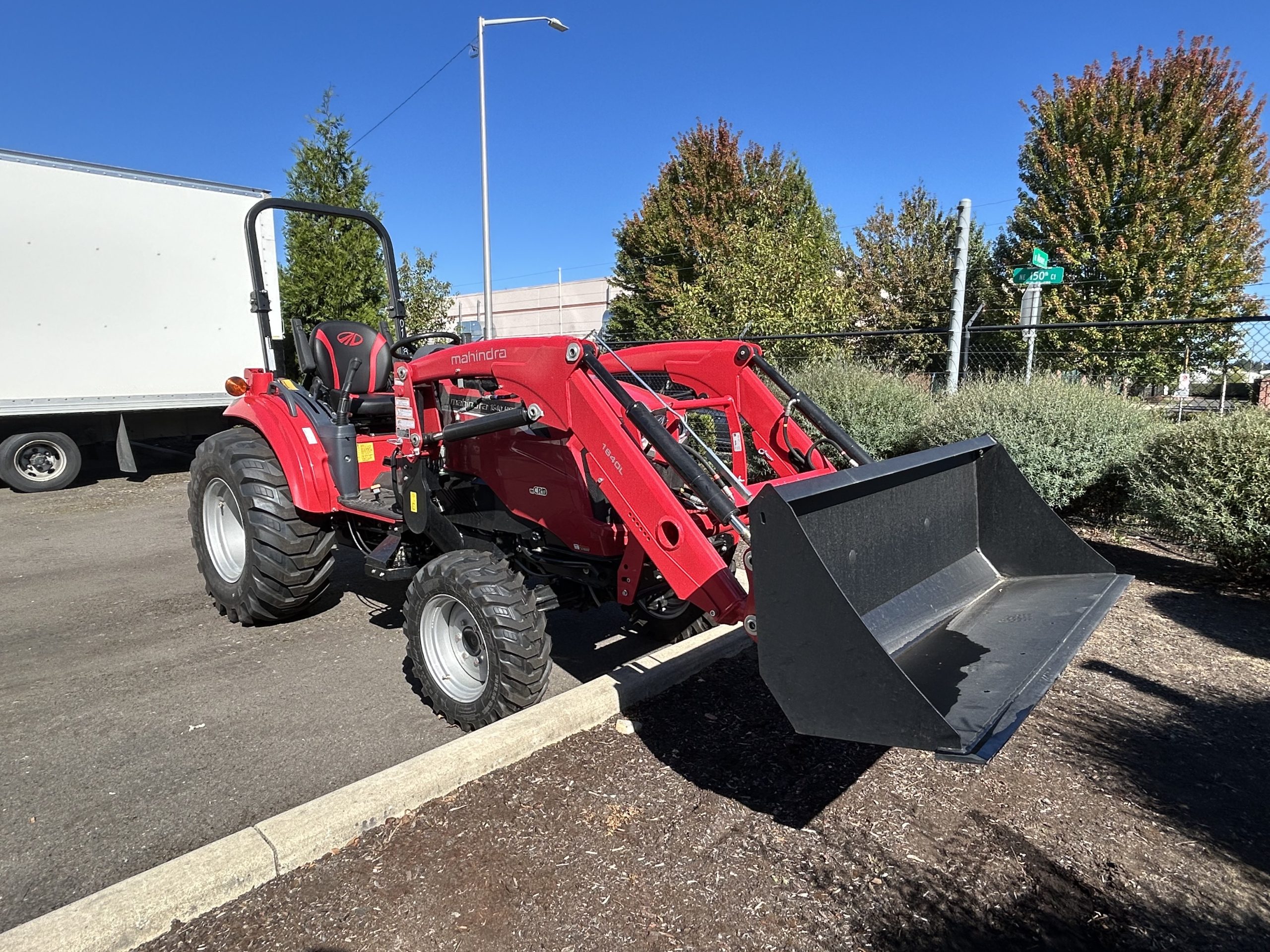

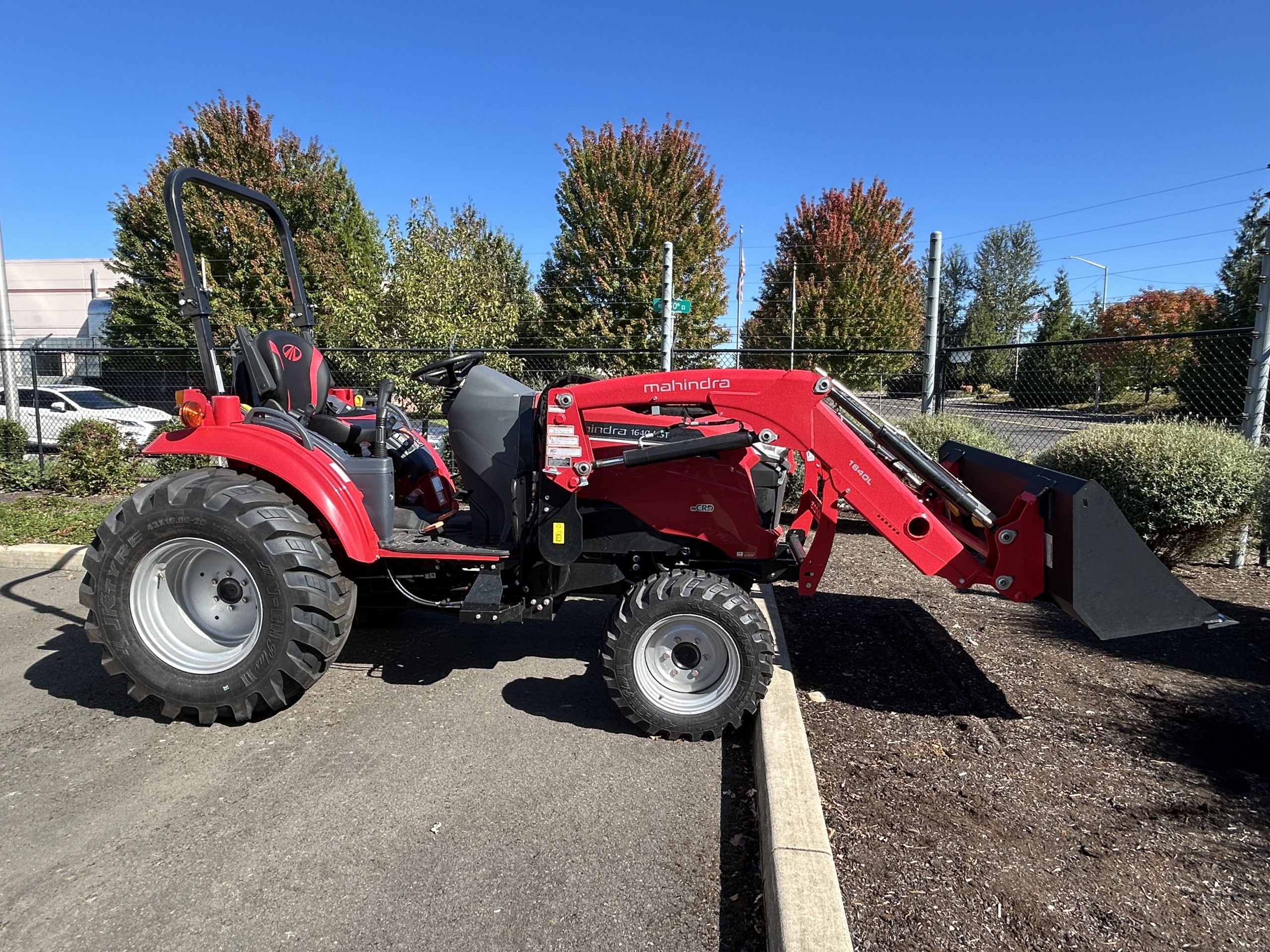

The Mahindra 1640 HST is a powerful and versatile compact tractor designed for operators who need smooth hydrostatic control, strong diesel performance, and reliable 4WD capability. Built for demanding agricultural, landscaping, and property maintenance tasks, the 1640 HST delivers strength, comfort, and precision in one compact machine.
Engine Performance
The Mahindra 1640 HST is powered by a durable 4-cylinder diesel engine designed for heavy-duty work.
- 38.7 HP (28.9 kW) diesel engine
- 2.7L (166.7 cu in) displacement
- Liquid-cooled, direct injection system
- 2400 RPM rated engine speed
- Fuel-efficient performance for long working hours
- Heavy-duty diesel reliability for tough conditions
Hydrostatic Transmission (HST)
Designed for ease of operation and precision control.
- 3-range hydrostatic transmission
- Infinite forward and reverse speed control
- Smooth operation for loader and mowing tasks
- Ideal for tight spaces and frequent direction changes
- 4WD (MFWD) standard for traction and stability
Hydraulics & PTO
Strong hydraulic performance for demanding implements.
- Open center hydraulic system
- 7.7 GPM main hydraulic flow
- 3.4 GPM steering flow
- Category I 3-point hitch
- Lift capacity: 2,646 lb
- Rear PTO: 540 RPM @ 2376 engine RPM
- PTO horsepower: ~27.7 HP
- Independent PTO operation
Loader Capability (1640L)
Built for lifting, loading, and material handling.
- Lift capacity: ~1,830 lb
- Maximum lift height: ~92 inches
- Heavy-duty loader frame design
- Ideal for gravel, soil, pallets, and farm materials
Dimensions & Weight
Compact footprint with heavy-duty stability.
- Length: 127.8 in (3245 mm)
- Width: 62 in (1575 mm)
- Wheelbase: 76.9 in (1955 mm)
- Ground clearance: 12.8 in (325 mm)
- Height: ~91.5 in (2325 mm)
- Weight: ~3,175–3,600 lb (configuration dependent)
Electrical System
- 12V electrical system
- 90A alternator
- 925 CCA heavy-duty battery
Tires
- Front: 7 x 16
- Rear: 11.2 x 24
