Description

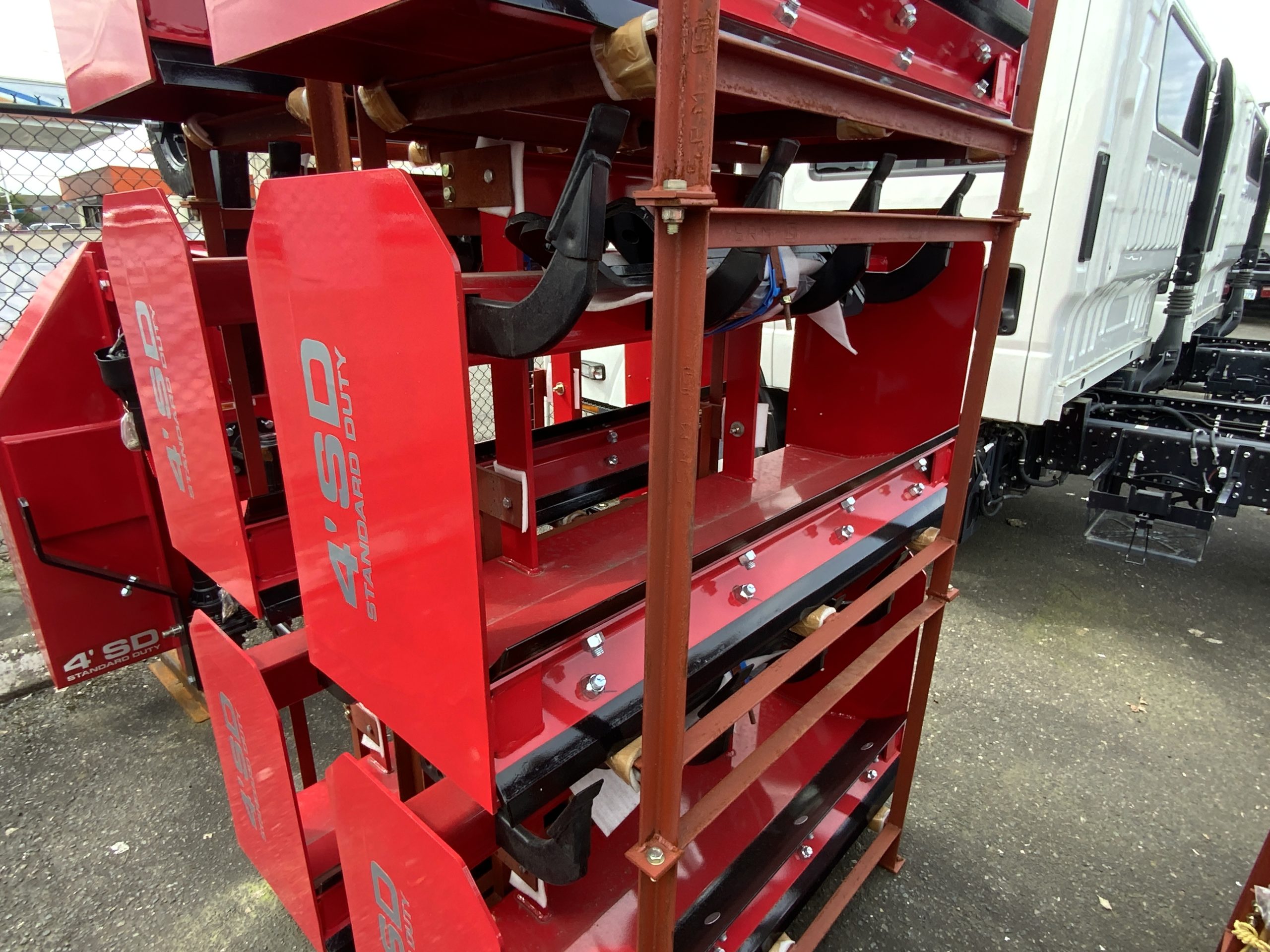

The SD4 Box Scraper is a durable and compact grading implement built for small to mid-size tractors ranging from 17–35 horsepower. Designed for precision land leveling, driveway maintenance, soil grading, and light construction work, the SD4 delivers reliable performance in tight or residential spaces.
Key Features
- 4 ft working width for tight-area maneuverability
- Cat I 3-point hitch compatible
- Heat-treated spring steel shanks for durability
- Replaceable, heat-treated dimpled shank tips
- Reversible high-carbon cutting edges
- Quick hitch compatible design
- Heavy-duty steel construction for long service life
Specifications
- Horsepower Range: 17–35 HP (13–26 kW)
- Working Width: 4 ft (1.2 m)
- Weight: 310 lb (135 kg)
- Shanks: 4
- Shank Penetration: 3 in (7.6 cm)
- Shank Beam: 4 x 4 x 0.25 in (10 x 10 x 0.63 cm)
- Side Panels: 16 x 24 x 0.25 in
- A-Frame Material: 0.5 x 3.5 in
- Hitch Type: Category I
- Quick Hitch: Compatible
- Dimensions (L x W x H): 1285 x 1130 x 2245 mm
Ideal Applications
- Driveway grading and maintenance
- Land leveling and soil conditioning
- Small farm and acreage work
- Landscape preparation
- Light construction cleanup
