PURPOSE-BUILT FOR THE BOTTOM LINE.

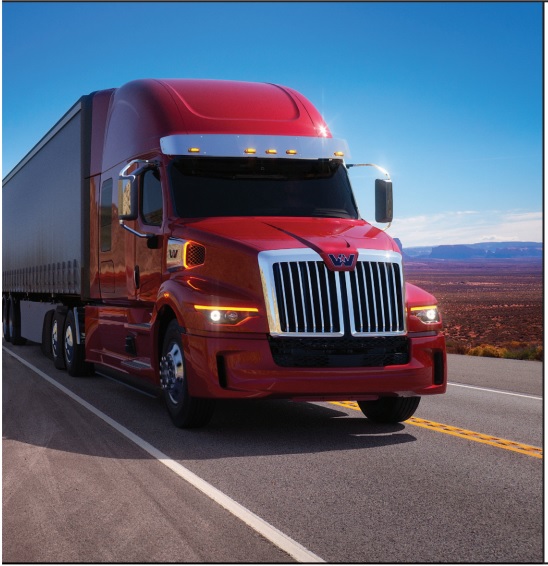

Introducing the 57X, the newest member of the Western Star X-Series family and the most advanced and driver-focused highway truck we’ve ever built.

Built on a history of toughness and equipped with technology, comfort, safety and efficiency that rewards you every time you get behind the wheel and when you check your bottom line.

Specs

57X RESOURCES

57X ENGINES

Detroit DD13

Detroit DD15

Detroit DD16

57X SPECIFICATIONS

SPECIFICATIONS

SPECIFICATIONS

	STANDARD	OPTIONS
BBC	128.5″
Wheelbase	Up to 361″
BA	54.5″
Engine	Detroit® DD13® Gen 5, 370-525 HP, 1250-1850 lb-ft	Detroit® DD15® Gen 5, 425-505 HP, 1550-1850 lb-ft Detroit® DD16® 500-600 HP, 1850-2050 lb-ft
Aerodynamics		12″ daycab and 24″ sleeper side extenders with black flexible ends 72″ and 60″ mid-roof aero roof fairing Daycab aero roof fairing or adjustable aerodynamic deflector Chassis side fairings with black flexible skirts Optimized drive wheel fairings Flow below mold-in color wheel covers
Transmission	Detroit® DT12® On-Highway Series	Eaton Fuller Manual 10- 13- 18-speed
Frame		7.0MM X 88.0MM X 279.0MM STEEL FRAME (0.28″X3.46″X10.98″) 120 KSI 8.0MM X 88.0MM X 281.0MM STEEL FRAME (0.31″X3.46″X11.06″) 120 KSI 11.0MM X 85.0MM X 287.0MM STEEL FRAME (0.43X3.35X11.30 INCH) 120 KSI
Power Take-Offs (PTOS)		Intuitive and simple to use PTO control system that makes programming easy Optional Factory installed transmission PTO’s available
Front Axles	Detroit® 12,000-14,700 lbs	Meritor 12,000-13,300 lbs Hendrickson STEERTEK NXT 12,000-13,300 lbs
Rear Axles	Detroit® single 21,000-23,000 lbs	Detroit® tandem 40,000-46,000 lbs Meritor single 21,000-23,000 lbs Meritor tandem 40,000-46,000 lbs Dana tandem 46,000 lbs
Front Suspension	Taperleaf 12,500-14,600 lbs	AirLiner® 12,500-13,300 lbs Hendrickson AIRTEK 12,500-13,300 lbs
Rear Suspension	AirLiner® single 21,000-23,000 lbs	AirLiner® tandem 40,000- 46,000 lbs
Brakes	Drum Brakes	Air Disc Brakes WABCO^® Anti-lock Braking System (ABS) and optional Hill Start Aid and Traction Control
Tanks – Fuel	Aluminum 25″ cylindrical, plain or polished	LH/RH 60-150 gallon (227-568 liter) LH and RH split fuel/hydraulic tank options available
Tanks – Def	13- and 23-gallon (49- and 87-liter)

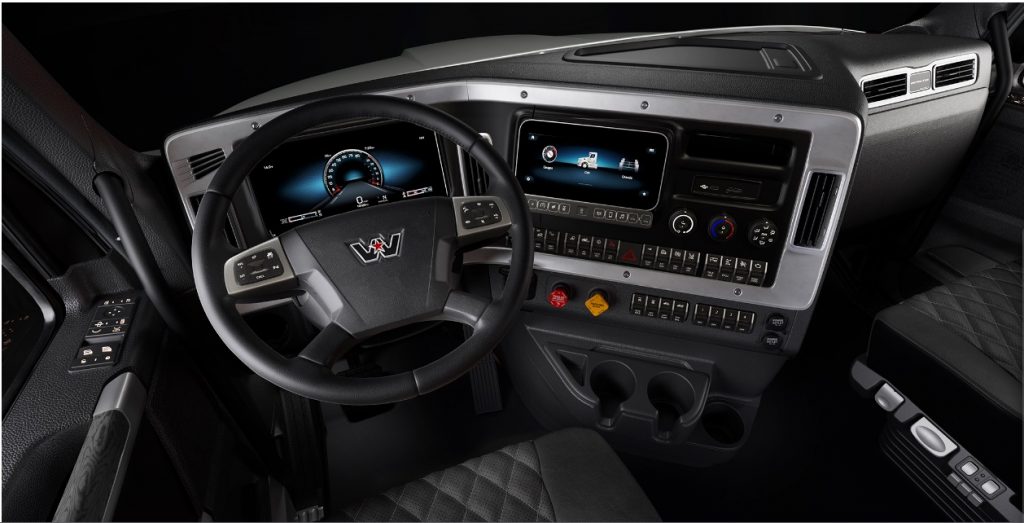

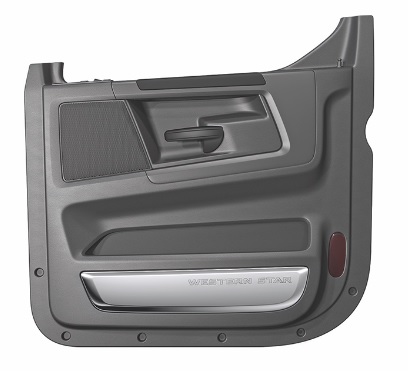

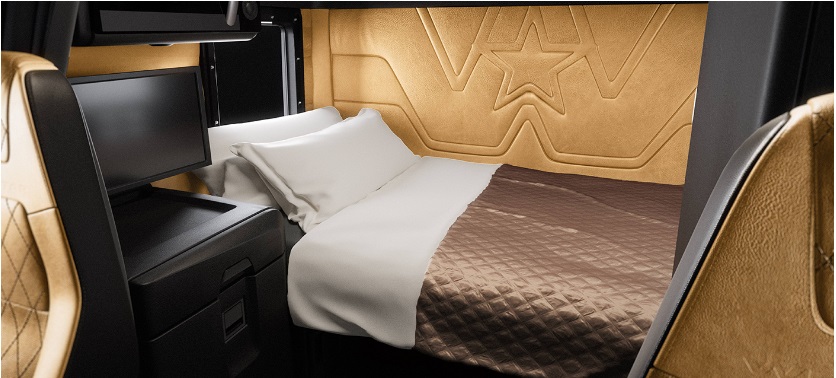

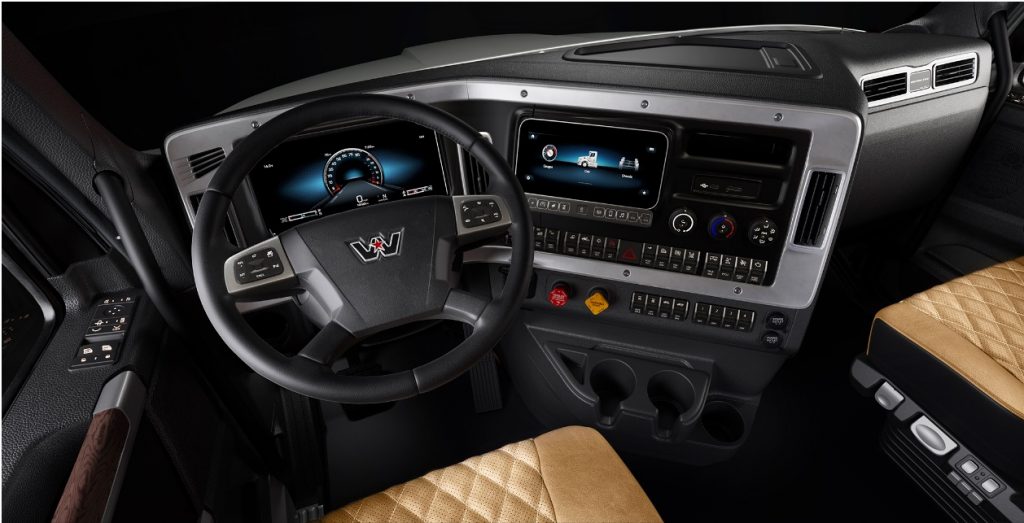

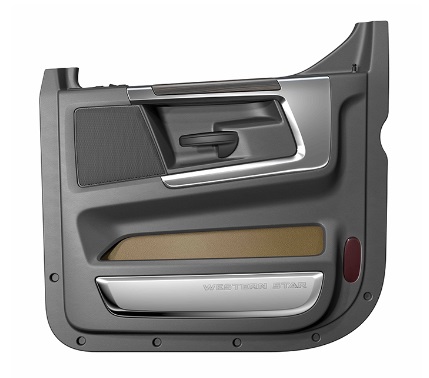

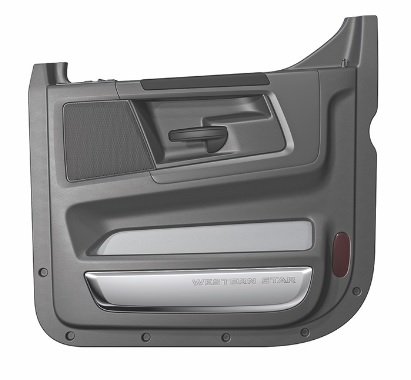

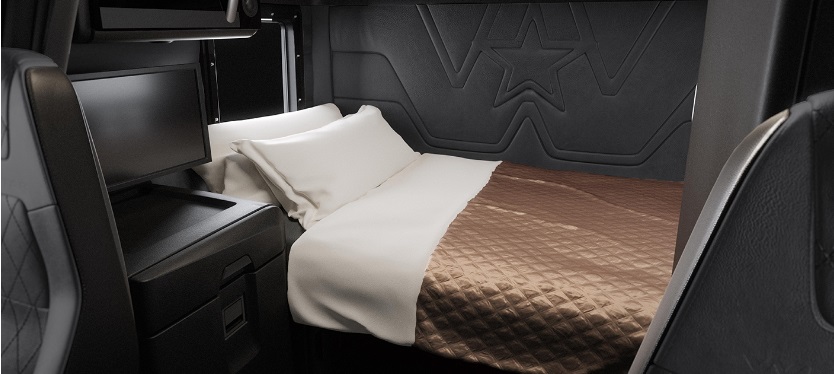

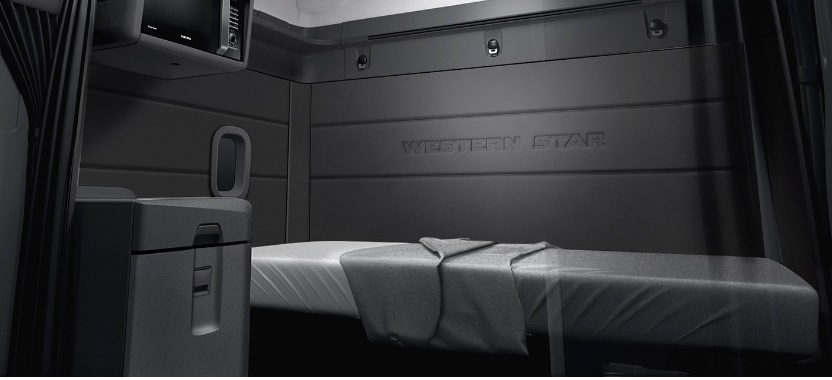

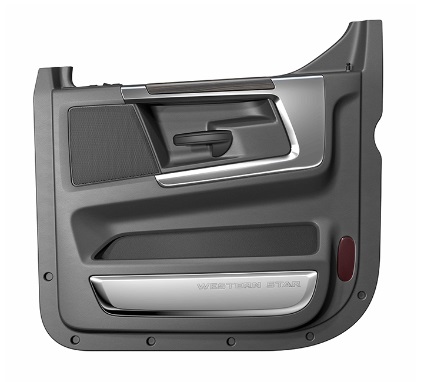

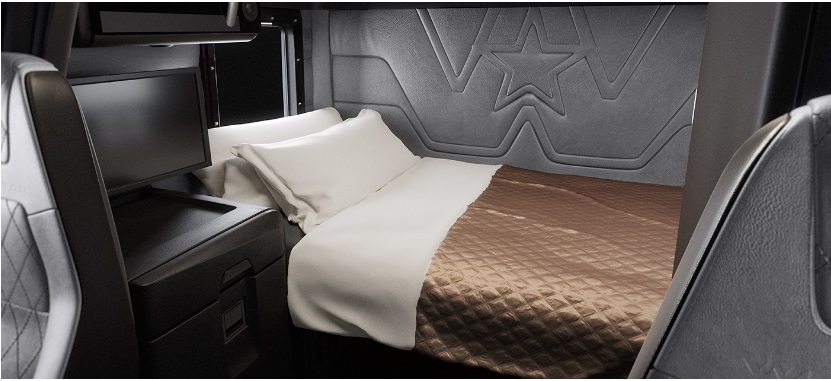

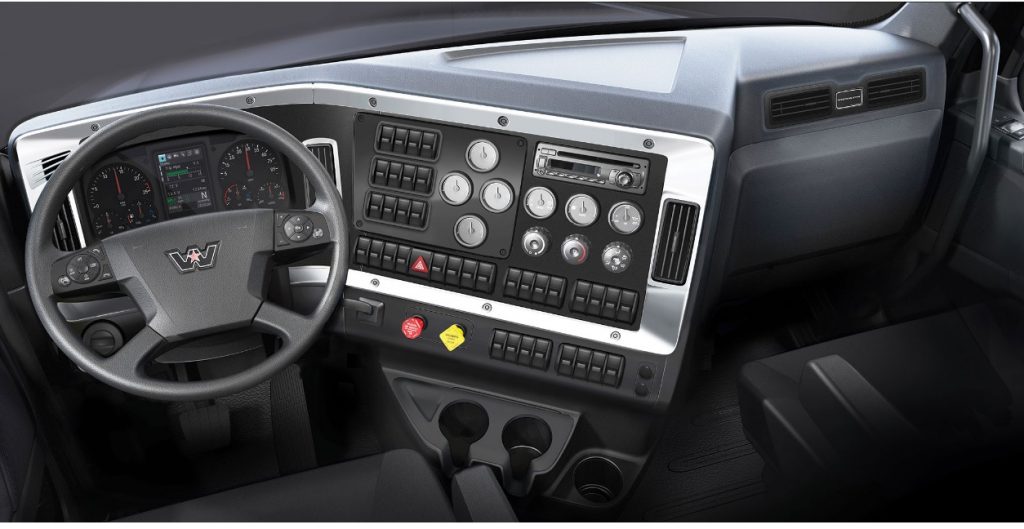

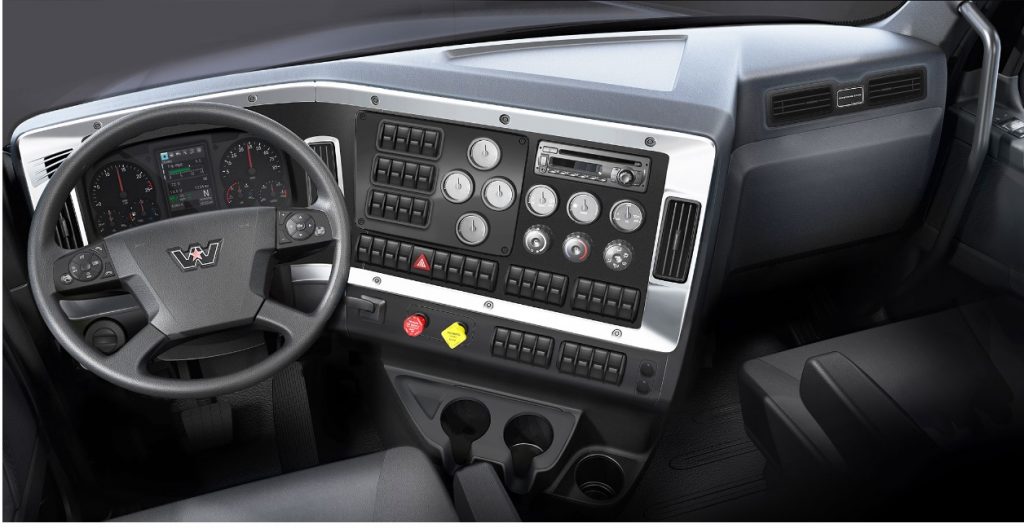

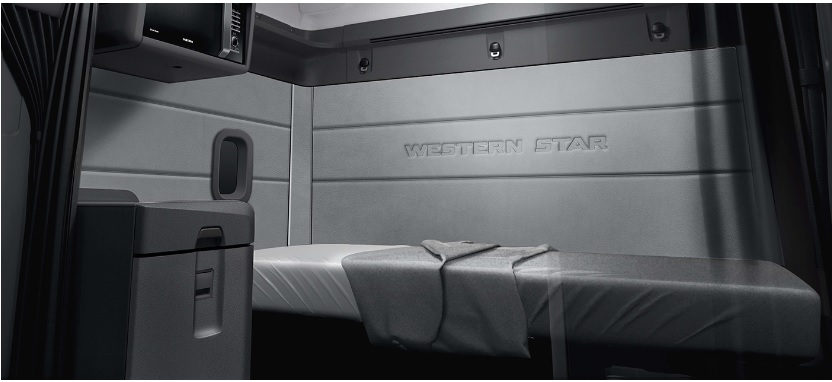

57X SLEEPERS & INTERIORS

STRETCH YOUR LEGS WITHOUT EVER STEPPING OUTSIDE.

While most interiors out there feature sleepers that seem little more than afterthoughts, Western Star’s all-new interior is planned with comfort, space and storage to spare. With four sleeper models, five roof heights and a high-quality walkthrough design, you can outfit your truck exactly how you want. Add to that a variety of ugraded material and color options and you have the kind of workplace you’ve always wanted. After all, it’s your truck. It should fit you, not the other way around.
